Custom CAD and product development
Design a new bracket, mount, enclosure, adapter, or product around a real use and space.
Request this service
When it fits
This is useful when…
This is useful when the part you need does not exist yet: you have a problem, a rough sketch, or hardware that needs to fit together, but not a finished model.
What to send
- A description or sketch of what the part must do
- Photos and dimensions of the available space
- Hardware, mounting points, and moving parts it must clear
- Expected loads, environment, quantity, and must-avoid details
What comes back
Possible deliverables
- A written understanding of the key requirements
- CAD development with a design proof when review is needed
- The agreed model files, prototype, or finished printed parts
One real example

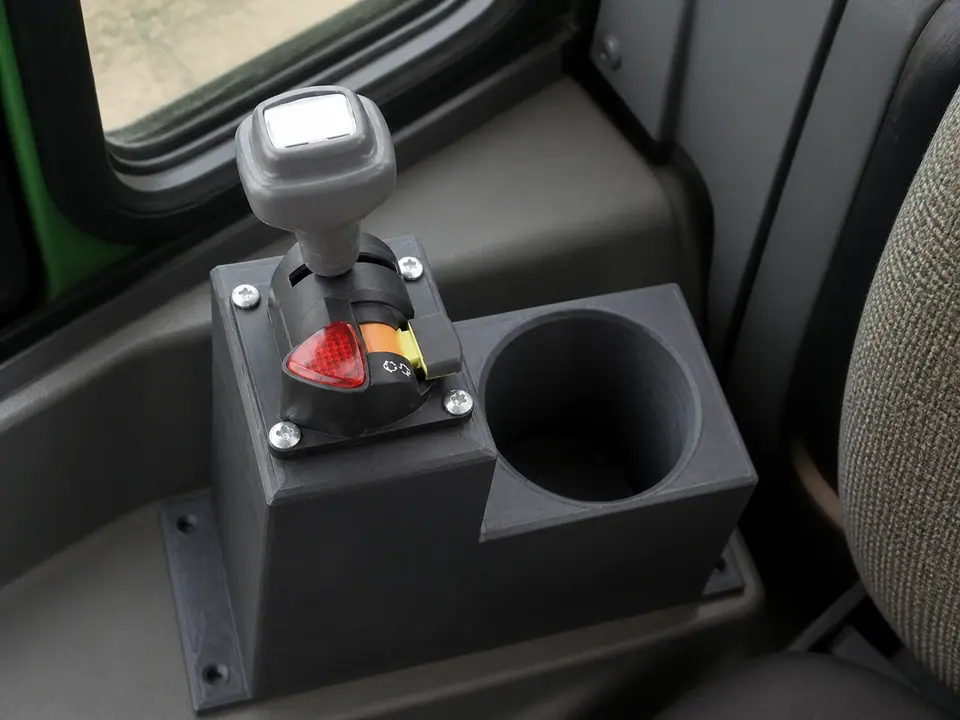

PTO control console
- The problem
- A PTO control and cup holder needed one stable home in a constrained operator area.
- The result
- The fitted design combines both functions while keeping the control accessible and securely mounted.
Decision guide
Questions about Custom CAD and product development
Do I need a technical drawing?
No. A rough sketch, labelled photos, and a clear explanation of the problem are enough to start. Exact measurements can be gathered once the important interfaces are understood.
Can I review the design before it is printed?
Yes, when a design review is useful. The proof shows the proposed version, and any requested changes stay attached to the project.
Who owns the final model?
The quote should state which files or usage rights are included. If you need editable source files or manufacturing files, mention that in the request.
Start with what you have.
Imperfect photos, rough measurements, or an existing file can be enough for the first review.
